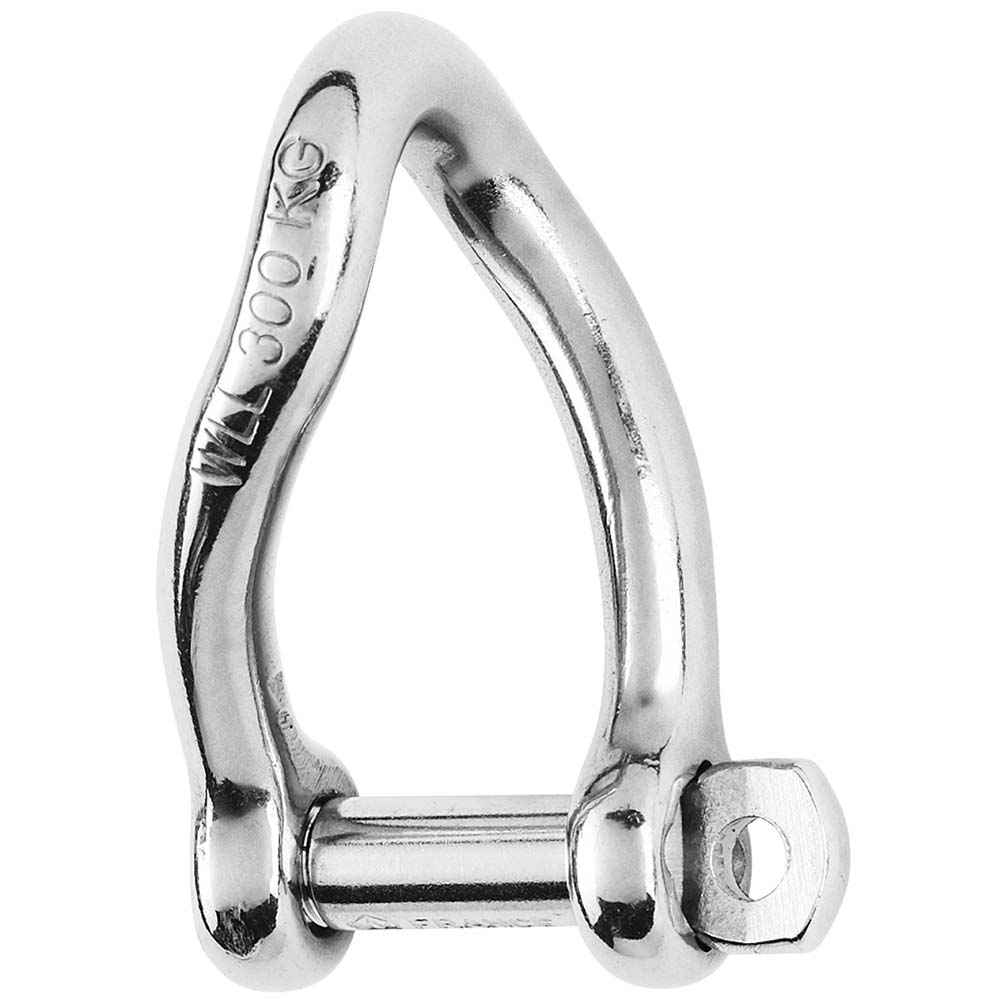

Self-Locking Twisted Shackle - Diameter 5mm - 3/16"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • Breaking load (lb) 2420
  • Weight (lb) 0.035

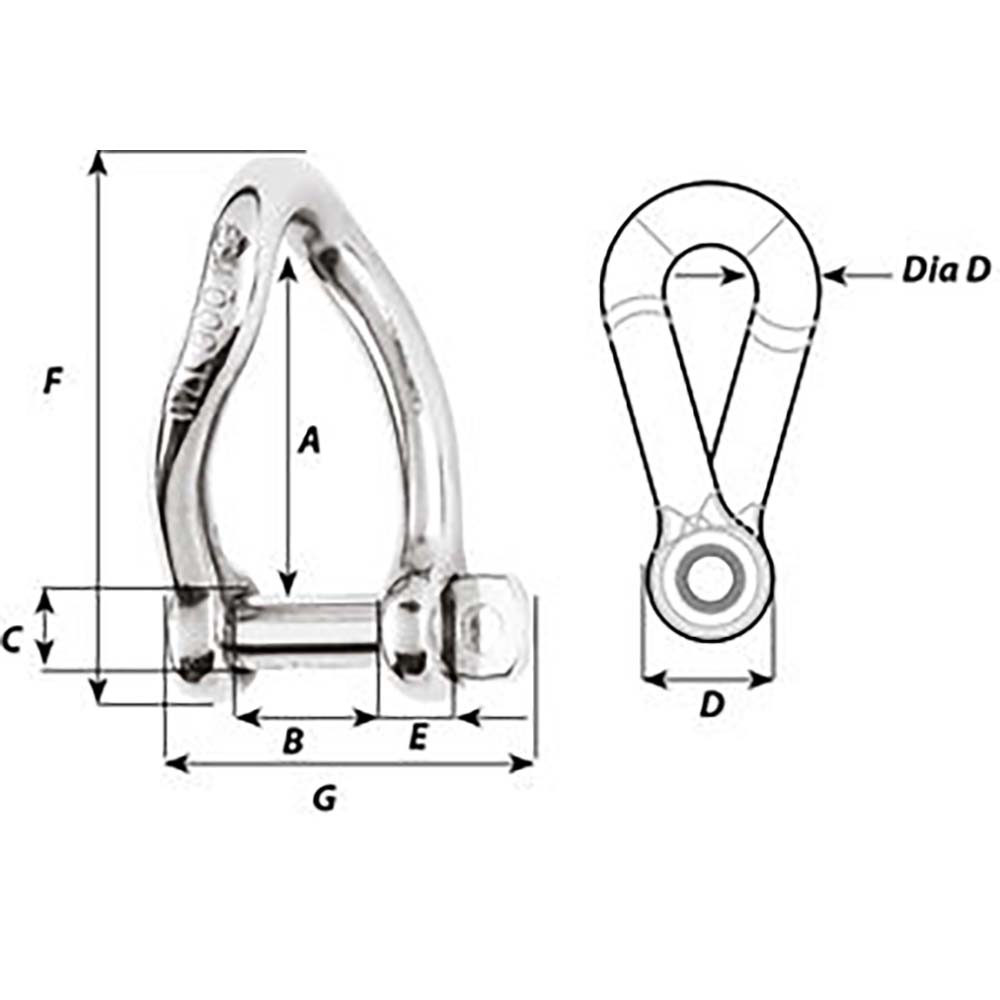

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 25/64"
  • C (inch) 13/64"
  • D (inch) 25/64"
  • D diameter (inch) 13/64"
  • E (inch) 5/32"
  • F (inch) 1-1/2"
  • H (inch) 1-1/32"
