Price
Regular price $62.95
Regular price $97.00 Sale price $62.95
Save $34.05
/
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon
CWR-97637
Shipping calculated at checkout.

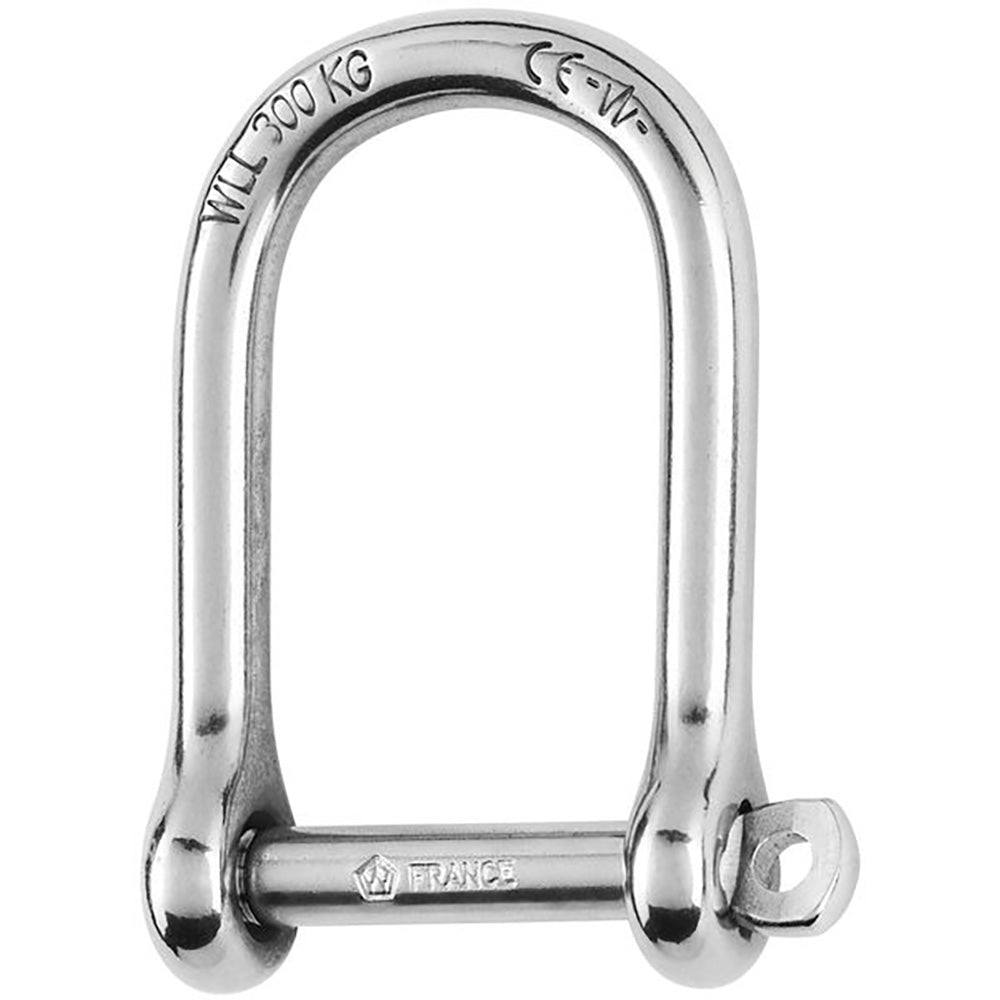

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"

Features:

  • Self-locking large shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • For applications where a large opening shackle is required

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • WLL: (lb) 1760 / (kg) 800
  • Breaking load: (lb) 8810 / (kg) 4000
  • Weight: (lb) 0.28 / (kg) 4000

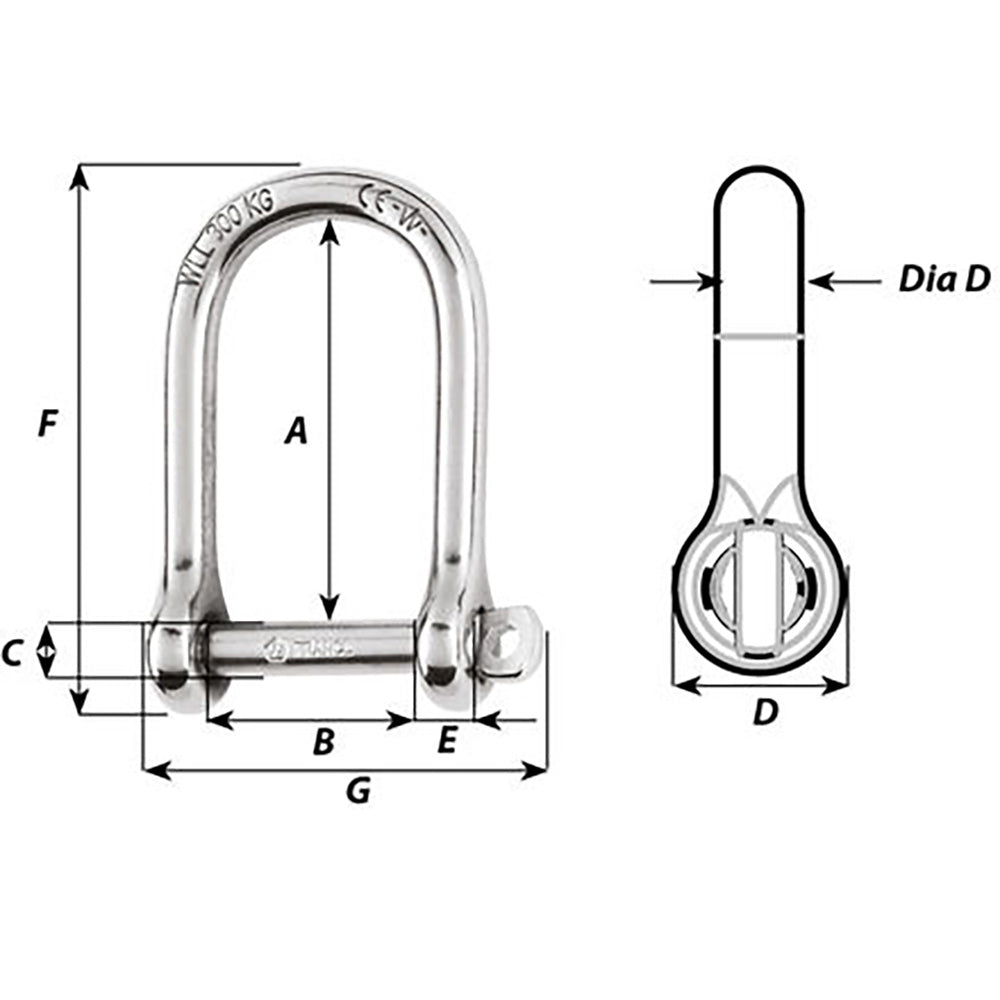

Dimensions:

  • A: (inch) 2 53/64" / (mm) 72
  • B: (inch) 1 37/64" / (mm) 40
  • C; (inch) 25/64" / (mm) 10
  • D: (inch) 53/64" / (mm) 21
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 25/64" / (mm) 10
  • G: (inch) 2 51/64" / (mm) 71

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
