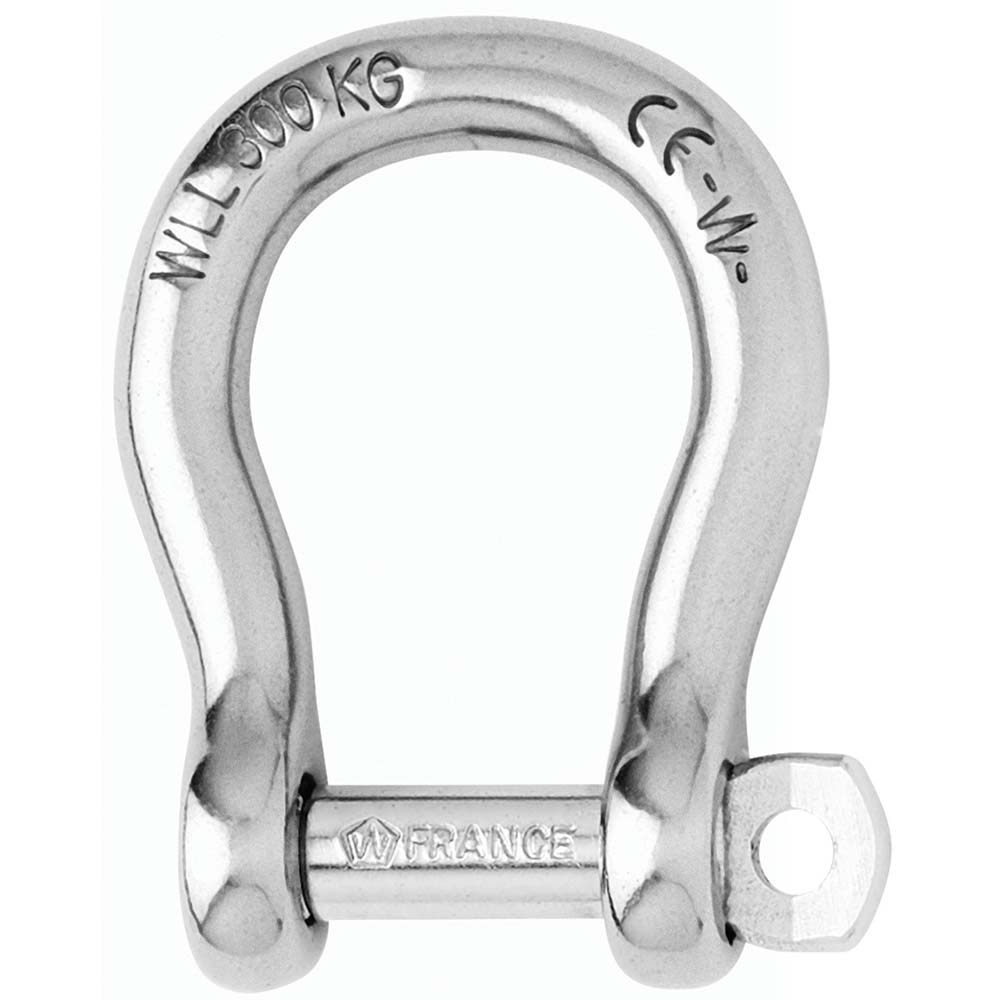

Self-Locking Bow Shackle - Diameter 6mm - 1/4"

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • WLL (lb) 660
  • Breaking load (lb) 3300
  • Weight (lb) 0.066

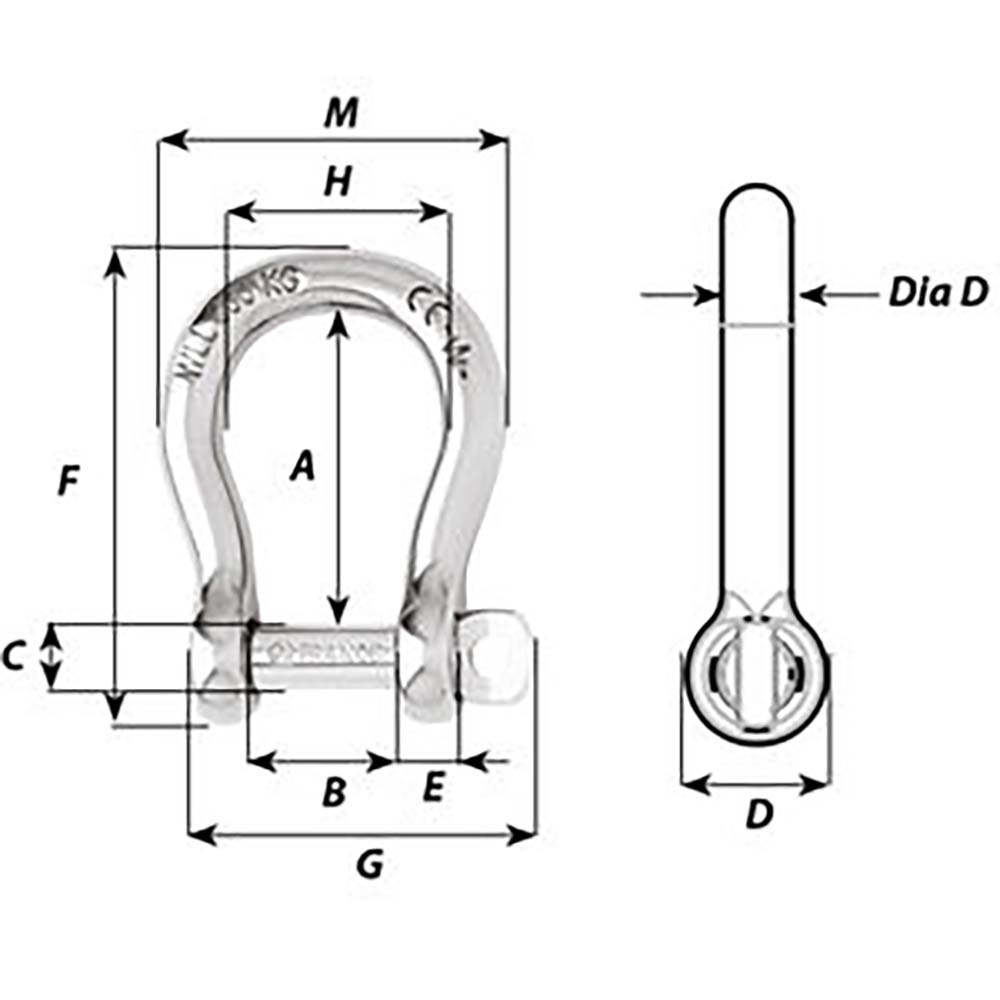

Dimensions (see 2nd image):

  • A (inch) 1-7/64"
  • B (inch) 15/32"
  • C (inch) 15/64"
  • D (inch) 15/32"
  • D diameter (inch) 15/64"
  • E (inch) 13/64"
  • M (inch) 1-17/64"
