Blue Sea 8100 ELCI GFCI Panel [8100]
Price
Regular price $45195
Regular price $74299 Sale price $45195
Save $291.04
/
  • Secure payments
  • Low stock - 5 items left
  • Backordered, shipping soon
CWR-40605
Shipping calculated at checkout.

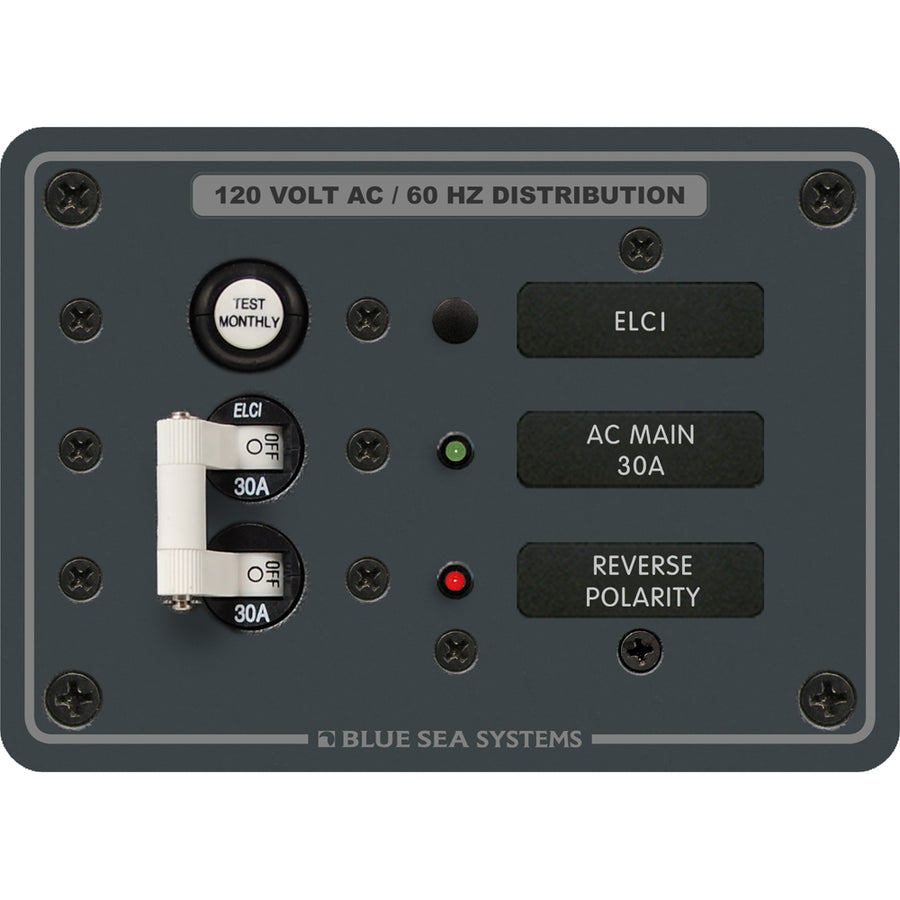

ELCI Main 30A Double Pole

  • One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
  • ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
  • Red " Reverse Polarity" LED
  • All circuit label positions are backlit
  • "ON" indicating LEDs


Specifications
Nominal Voltage 120V AC
Leakage Trip Amps 30mA
Height 5.25" (133.35mm)
Width 3.75" (95.25mm)
Depth 3.50" (88.9mm)
Weight 2.25lb (1.02kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Voltage: 120v
  • Box Dimensions: 5"H x 9"W x 12"L WT: 2 lbs
  • UPC: 632085081003

Quick Guide (pdf)
Owner's Manual (pdf)
