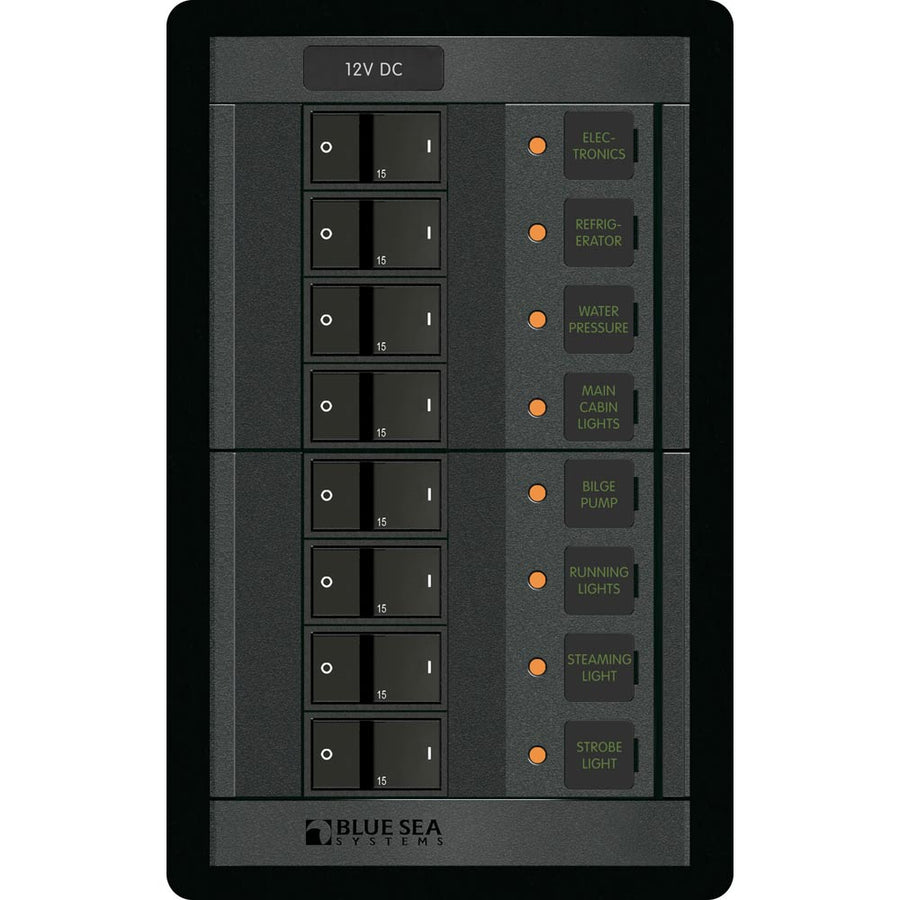

![Blue Sea 1200 12V DC 8 Position - Vertical [1200]](http://reelspooledcharters.com/cdn/shop/files/57222XL.jpg?v=1721186954&width=1080)
12 Volt DC 8 Position - Vertical
Features:
- 4 to 32 branch circuits with installed 15 Ampere circuit breakers
- Available with voltmeters, ammeters, and digital multimeters
- Includes 4205-Square Format Label Set
Specifications:
-
Positions: 8
-
Nominal Voltage: 12V DC
-
Maximum Amperage*: 100A
-
Height: 7.75" (196.85mm)
-
Width: 4.88" (123.95mm)
-
Depth: 3.00" (76.2mm)
- Weight: 2.60lb (1.18kg)
* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
Includes:
(8) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: DC
- Box Dimensions: 6"H x 6"W x 16"L WT: 2.3 lbs
- UPC: 632085012007
Quick Guide (pdf)
Owner's Manual (pdf)
