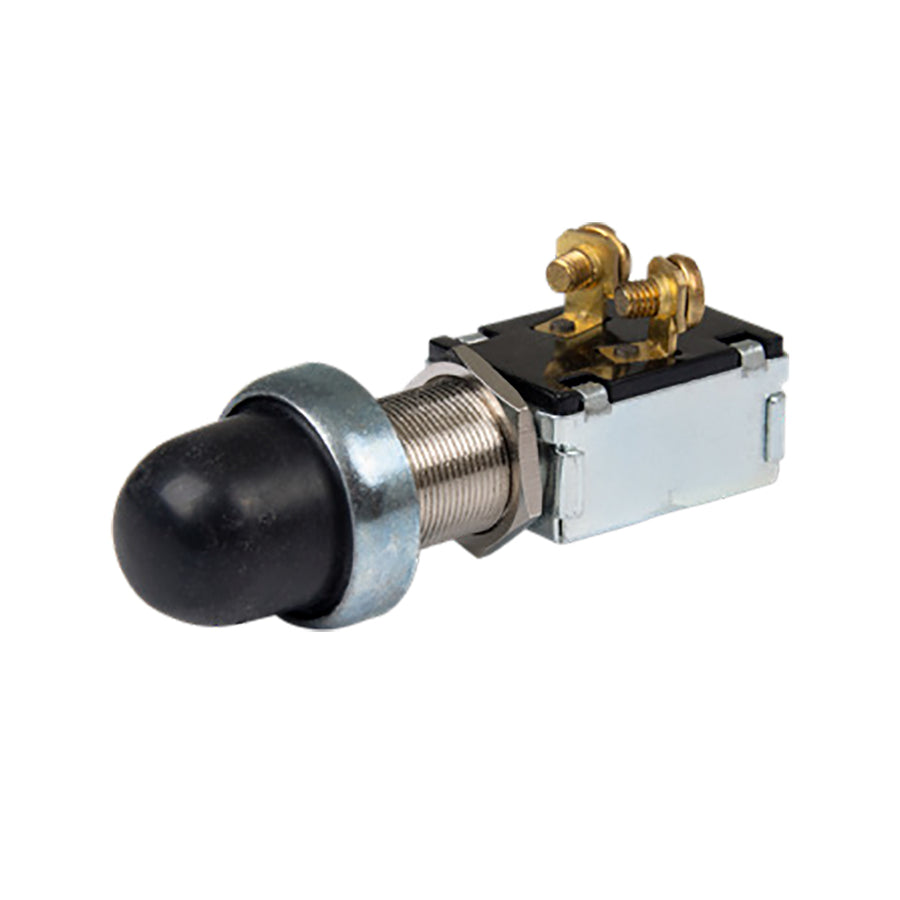

2-Position SPST Moisture Sealed Push Button Switch - OFF/(ON)

Single pole, single throw switch turns one circuit on and off. Can be used for intermittent windshield wiper or horn control.

Features:

• Gasket-sealed brass case protects against moisture and dirt
• Replacement cap 1001502
• Nominal voltage is 6-36V DC
• Rated for 10A at 12V DC
• #8-32 screw terminals
• Fits panels up to 1" thick
• Same as Cole Hersee part number M-485

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Action: (ON)-OFF
• Color: Black
• Throw/Pole: SPST
• Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs
• UPC: 870216046068
