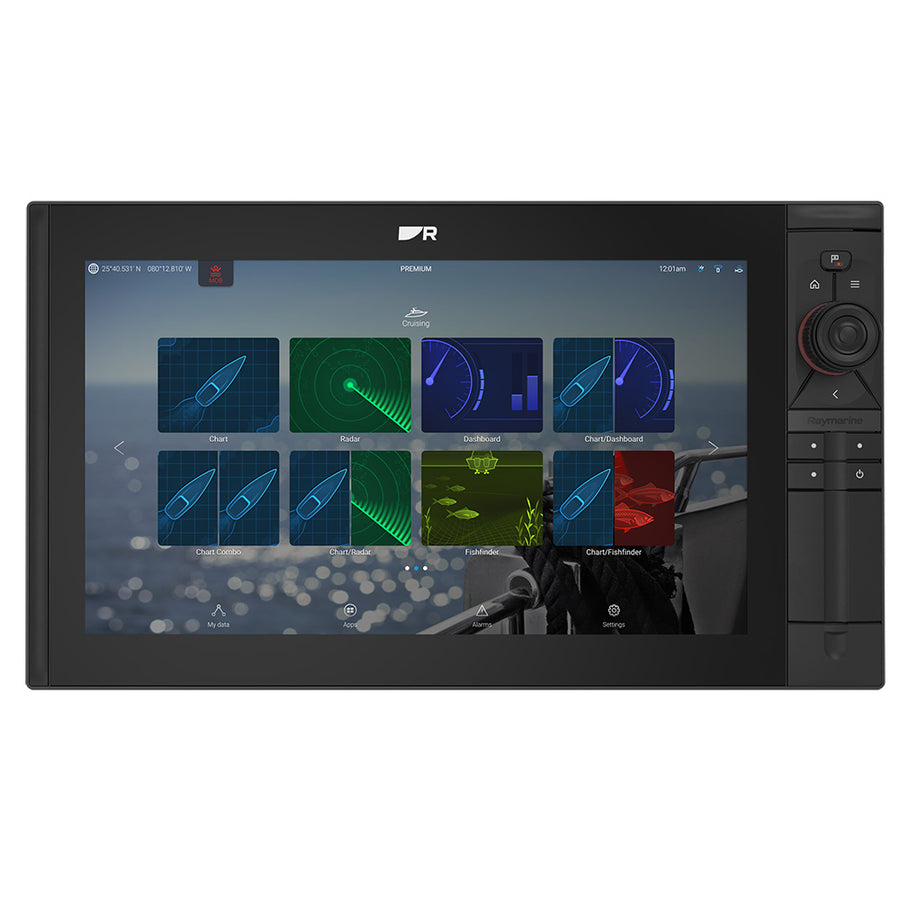

Axiom 2 Pro 16 S 15.6" Chartplotter/Fishfinder - No Chart or Transducer

Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.

Features:

• Get underway faster with a fast 6-core processor
• HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
• Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
• Integrated High CHIRP sonar with transom, in-hull and low-profile through-hull CPT-S series transducer options
• Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
• Create your own Axiom 2 Pro system with multiple networked Axiom displays
• Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems

Specifications:

Connections:

• Digital Video & Audio Out Connection: HDMI Out Micro connector type D’
• External GPS Antenna Connection: TNC connector
• Accessory connection: USB Micro B (rear–charging, external storage device or RCR-SD/USB Accessory (A80440)
• Ethernet connection: RayNet (10/100/1,000 Mbits/s) x2
• External storage: MicroSD card slot x2 (front)
• Chart options:  Navionics+ or Navionics Platinum or C-map 4D Software, Lighthouse North America
• NMEA 2000 connection: DeviceNet connector
• Analog video connections: BNC Analog video input (on power cable)
• Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
• Transducer connection: 25-pin RealVision type connector (requires adaptor cable)
• Audio connections: Left and Right RCA connectors via Power/Video/Audio cable

GPS:

• GNSS compatibility: GPS, Galileo, GLONASS, Beidou

Sonar:

• Channels:  CHIRP conical sonar ( Uses CPT-S Transducers with adapter cable A80490)
• Depth range:  0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions

Lighting:

Illumination:   Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2

Storage:

• Internal storage: 64 GB Solid State

Specifications:

• Cartography Brand: Navionics/C-Map
• Screen Size: 16"
• Touchscreen: Yes
• Transducer Included: No
• Box Dimensions: 10"H x 14"W x 22"L WT: 19.6 lbs
• UPC: 723193843550
